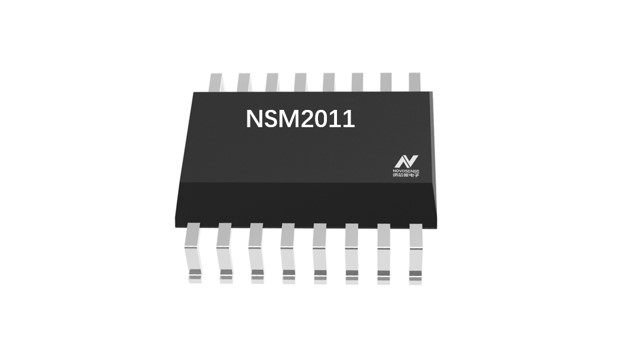

NSM2011 series is a chip-level current sensor launched by NOVOSENSE which is mainly used for isolation measurement of current under 100A.
• 10~100A Wide current range available
• AC/DC input
• 3.3V/5V single power supply
• 0.85mOhm low Input conduction impedance
• ±2% current measurement accuracy
• 2us response time
• 240kHz signal bandwidth
• Withstand up to 13kA surge current (8μs /20μs surge current waveform)
• Ratiometric output
• SOW16 package: 1550VDC working isolation voltage / 5000 Vrms @ 1 min Withstand isolation voltage
• 8mm Creepage distance
• 8mm Clearance distance
• Common-Mode magnetic field rejection
• -40~125°C operating temperature range
• UL62368/EN62368 safety certification
• Industrial: PV inverter, industrial frequency converter, power supply (UPS, SMPS, etc.), PDU, etc.
• Consumer: service robots, drones, two-wheeled vehicles, vacuum cleaners, etc.
