    • Up to 5000Vrms Insulation voltage

    • ±250mV linear Input Voltage Range

    • Fixed Gain: 8

    • Low Offset Error and Drift: ±0.5mV (Max), -5~5μV/℃ (Max)

    • Low Gain Error and Drift: ±0.35% (Max), ±50ppm/℃ (Max)

    • Low Nonlinearity and Drift: ±0.05% (Max), ±1ppm/℃ (Typ)

    • SNR: 86dB (Typ, BW=10kHz), 72dB (Typ, BW=100kHz)

    • Bandwidth: 100kHz (Typ)

    • High CMTI: 150kV/μs (Typ)

    • System-Level Diagnostic Features:

       VDD1 monitoring

       Input common-mode overvoltage detection

    • Operation Temperature: -40℃ ~125℃

    • AEC-Q100 qualified for automotive applications

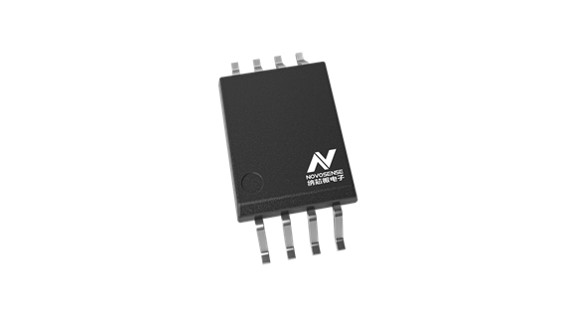

    • RoHS-Compliant Packages: SOP8(300mil)

    • UL recognition: up to 5000Vrms for 1 minute per UL1577

    • CQC certification per GB4943.1-2011

    • CSA component notice 5A approval IEC60950-1 standard

    • DIN VDE V 0884-11:2017-01

    • Shunt current monitoring

    • AC motor control

    • Power and PV inverters

    • UPS

    • Onboard charger
